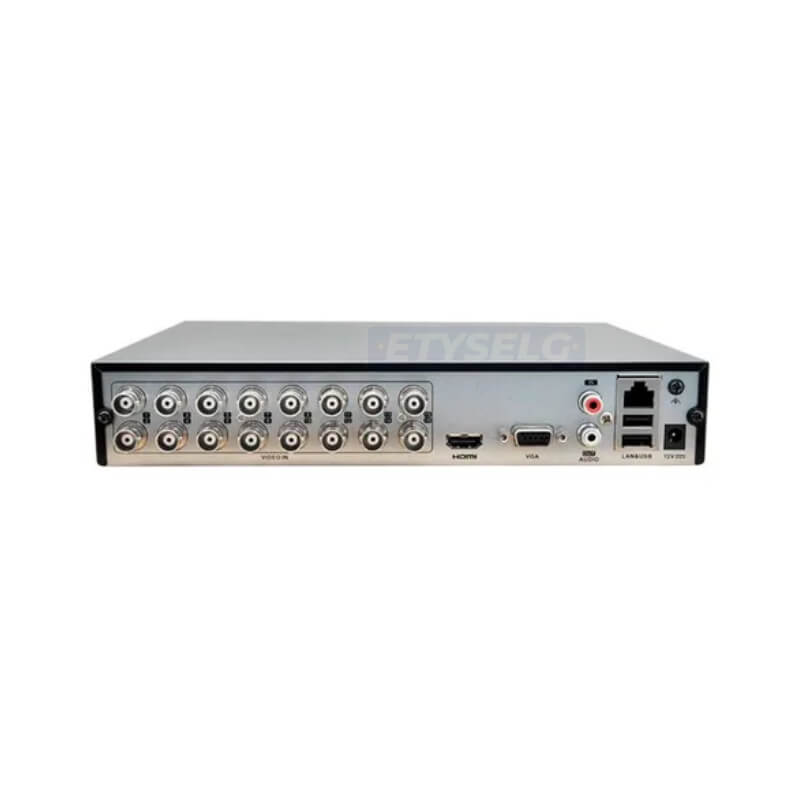

DVR HiLook 16 canales análogo 1080p con IA, compatible con audio coaxitron
5 / 5
Precio al por mayor
- Detección de movimiento 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported
- Video and Audio
- Entrada de vídeo IP
- 2-ch (up to 18-ch)
- Enhanced IP mode on:
- 8-ch (up to 24-ch), each up to 4 Mbps
- Up to 6 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico
- 16-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth96 Mbps
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Entrada de Audio
- 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- 16-ch via coaxial cable
- Salida de audio1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Reproducción síncrona16-ch
- Recording
- Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificación
- When 1080p Lite mode is not enabled:
- 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
- When 1080p Lite mode is enabled:
- 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
- Main stream:
- When 1080p Lite mode not enabled:
- For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- When 1080p Lite mode enabled:
- 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- Sub-stream:
- WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Vídeo bitrate32 Kbps to 6 Mbps
- Doble flujoSupport
- Stream TypeVideo, Video & Audio
- Compresión de audioG.711u
- Audio Bitrate64 Kbps
- Red
- Conexión remota128
- Total Bandwidth128 Mbps
- Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Interfaz de red
- 1, RJ45 10M/100M/1000M
- self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacidadUp to 10TB capacity for each disk
- Interfaz USBReal panel: 2 × USB 2.0
- Alarma E/SN/A
- General
- Fuente de alimentación12 VDC, 2 A
- Consumo≤ 24 W
- Temperatura de trabajo-10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones de Humedad10% to 90%
- Dimensión (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
- ≤ 1.2 kg (2.6 lb.)
